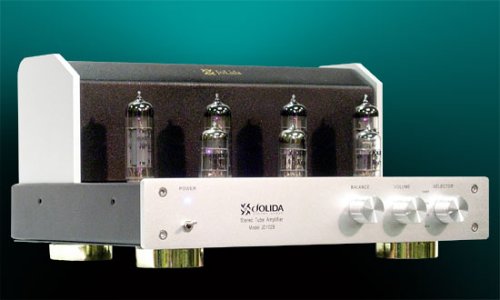

Jolida JD102B |
| Brand: JoLida
Category: CE
List Price: $650.00
Buy New: $630.00
You Save: $20.00 (3%)
Sales Rank: 87065
Color: black powder coated steel chassis and anodized aluminum
Shipping Weight (lbs): 18
Dimensions (in): 8 x 12 x 5
MPN: JD102B
Model: JD 102B
UPC: 410000095522
EAN: 0410000095522
ASIN: B000GKUSQU
Availability: Usually ships in 6-10 business days
| |
| Features:
| • | Great sounding, musical amp for small systems or entry level tube amp | | • | High Quality construction, built to last. Heavy gauge steel chassis | | • | Uses Push-Pull EL84/6BQ5s and three 12AX7s which are easy to source and inexpensive | | • | Complete integrated amp with four pairs of inputs and four and eight ohm outputs | | • | Easy to maintain. one year parts and labor warranty |
|
| Editorial Reviews:
Product Description
* Fully Integrated Stereo Amplifier: Input 900mV driving 20 watts, maximum 25 watts output. * Multiple Inputs: CD and Aux (for Tuner, TV, DVD Player, VCR, Tape Recorder, Computer and etc). Tape Loop and Pre-Out are available on request. * Right and Left Stereo Balance Control. * Custom Wound Audio Transformers with a core of German grain oriented silicon steel. 15th generation proprietary design. Secondary can be configured for a 4 ohm or 8 ohm load. * Top Panel Bias Testing Terminals with Bias Adjustment Controls. * State of the Art Components: Gold plated RCA input jacks, gold plated five way speaker connectors. Very favorably reviewed by most major web review sites and magazines. A great small amp for your office, den, bedroom or small listening room. Perfect for horn speakers or for bi-amping as well with sub woofer. Your Ipod or CD player will sound fabulous. This amp is about the best sounding amp for the money in the audio market. Technical Specifications: Maximum Power Output: 25 W per channel at 8 ohms, 1KHz Rated Output Power: 20 W per channel at 8 ohms, 26Hz to 50KHz Frequency Response: (at 1 watt into 8 ohms) 7Hz to 95KHz + 1dB; 0dB at 1KHz Bandwidth: 14Hz to 80KHz + 3dB; 0dB = 20 W 1KHz, 8 ohms Distortion THD + N: Less than 1.5% at 15W output, 39Hz to 10KHz, 8 ohms Circuit Type: Ultra Linear, Class AB1 Input Impedance: = or < 250Kohms Input Sensitivity: Max. 900mV for 20 watt output at 1KHz Output Impedance: 4 ohms and 8 ohms Negative Feedback: Less than 7 dB Signal & Noise Ratio S/N: 70dB below rated output from 10Hz to 200Khz. Tube Complement: 2 matched pairs (4) of EL84 power output; 2 pcs. 12AX7A pre-amplifier. Power Requirements: 110V-120 VAC 60Hz 90 watts-standby, 200 watts maximum (220 VAC 50Hz option). Dimensions: 12 inches wide by 8 inches deep by 5 inches high. Weight: 18 pounds net, approximately 22 pounds packaged. Warranty: One year limited parts and labor.
|
|
|
|
| |
