BFD Setup Help

1493 Views 3 Replies 3 Participants Last post by Hakka, Feb 28, 2009

BritInVA

Discussion Starter · Feb 27, 2009

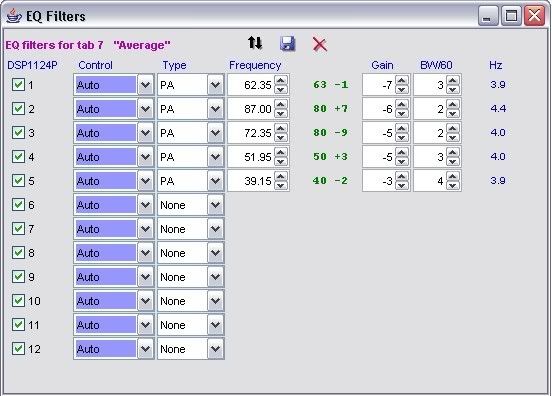

I measured with REW in 6 positions (same used for Audyssey setup) and the Averaged and REW provided following Filters.

I started manually setting filters to Preset 10 (as BFD will be switched on/off by a Power Conditioner)

On FILTER 1 Iused

FINE = -2
BANDWIDTH = 4
GAIN = -3

Then pressed STORE STORE

When I go in FILTER 2 and press FREQUENCY the display shows .50 but am unable to change it with the jog dial.

What am I doing wrong?

Cheers,
Mark

See less See more

Save

1 - 4 of 4 Posts

BritInVA

Discussion Starter · #2 · Feb 27, 2009

I have been able to set filters on preset 5. Not sure why preset 10 is not working. Only thing I see different is on present 10 all the Red LED's are flashing (except the LED for filter 1 whigh was programed).

With Preset 5 only the filters that are programmed are lit.

Also how do you erase a filter?

Cheers,
Mark

Save

joorge

· #3 · Feb 28, 2009

Set the gain to zero and save for each filter.

Save

Hakka

· #4 · Feb 28, 2009

Try changing the filter mode to PA, it sounds like its on SS at the moment.

Hakka.

Save
