All readings performed with a X-Rite certified and calibrated i1pro spectrophotmeter. This spectrophotometer is calibrated yearly by X-Rite.

X-Rite i1Pro Device Specifications

  • Spectral measurement device,supported measurement modes:
    Reflectance single measurement
    Reflectance scanning measurement with automatic patch detection
    Emission: radiance measurement (monitor measurement)
    Emission: irradiance measurement (light measurement)
  • Spectral analyser: Holographic diffraction grating with 128 pixel diode array
  • Optical resolution:10nm
  • Physical sampling interval: 3.5nm
  • Spectral data: Range: 380 to 730 nm in 10nm steps
  • Measurement aperture: 4.5mm diameter
  • Measurement geometry: 45°/0° ring illumination optics, DIN 5033
  • Light source: Gas filled tungsten (Type A)
  • Physical filters: No or UV cut (Filters not exchangeable)
  • Inter-instrument agreement: Average dE*94 0.4, max. dE*94 1.0
    (Deviation from X-Rite manufacturing standard at 23°C for single measurement mode on 12 BCRA tiles, D50, 2°)
  • Short-term repeatability: ΔE*94 <= 0.1 (D50, 2°), with respect to the mean CIELab value of 10 measurements every 3 seconds on white
  • Data format: Spectral radiance (mW/nm/m2 /sr); Luminance Y (cd/m2)
  • Measurement range: 0.2 to 300 cd/m2
  • Short-term repeatability: x,y: +/- 0.002 typical (CRT 5000°K, 80 cd/m2)
  • Type: Cosine-corrected diffuse light measurement head
  • Diameter: 6.0 mm
  • Data format: Spectral irradiance (mw/nm/m2), Illuminance Y (lux)
  • Physical dimensions: 6”L x 2.6”W x 2.6”H (151 x 66 x 67mm)
  • Weight: 6.5 oz (185g)
  • Power conditions: Device powered by USB. No additional charger or battery required. USB 1.1 high power device.


This will be a closed thread with all of the spectrophotometer readings of all the commercial materials I have.

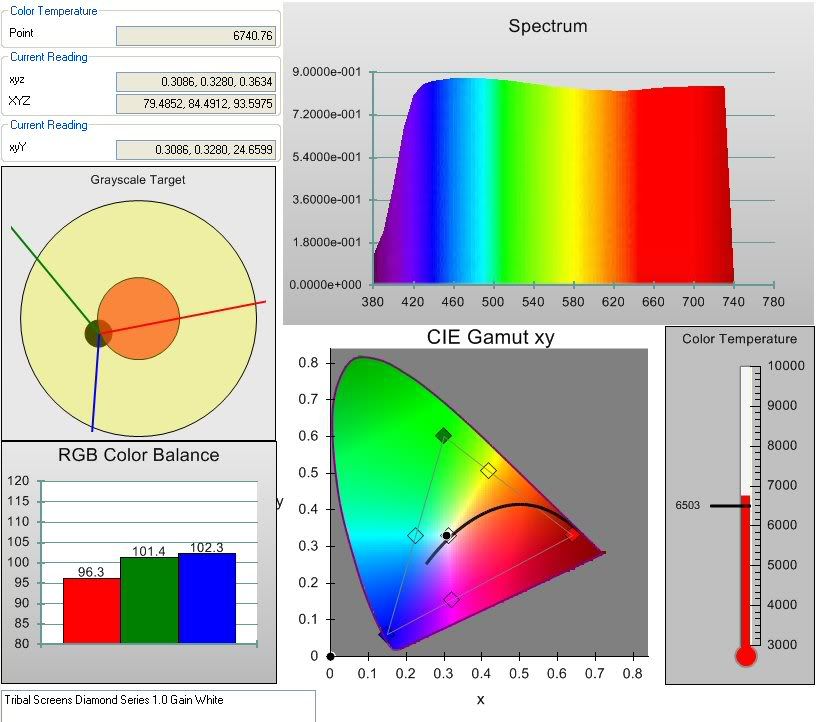

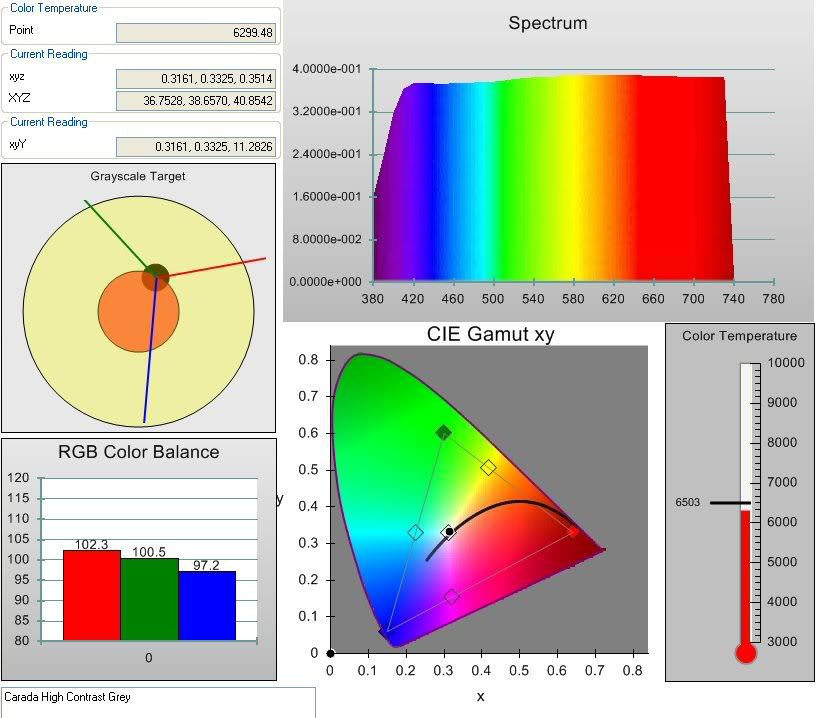

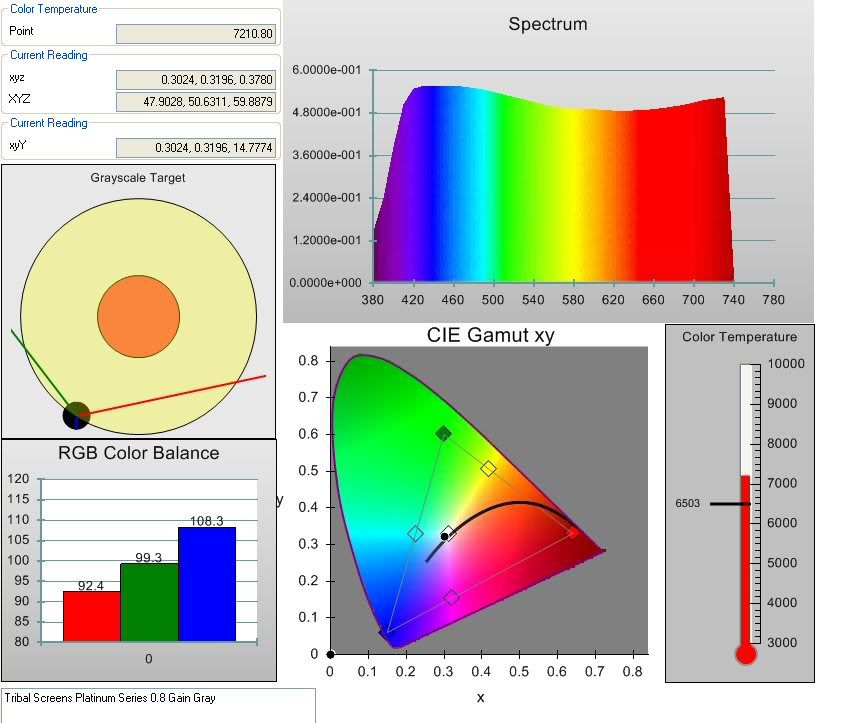

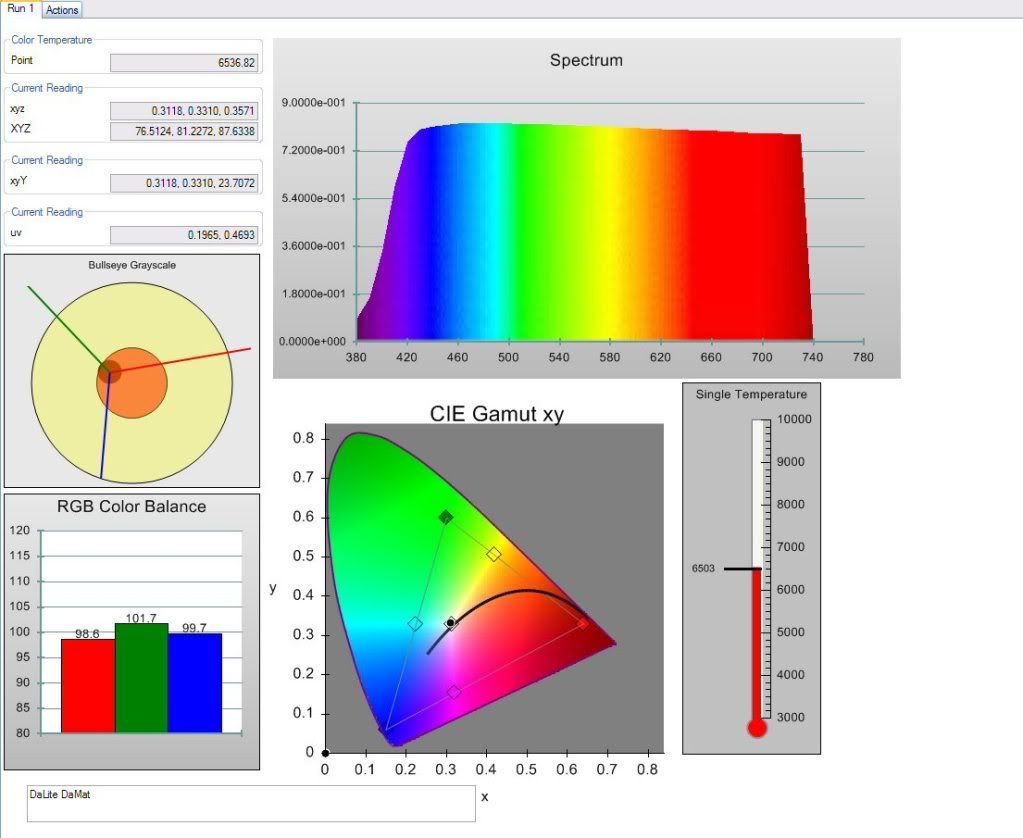

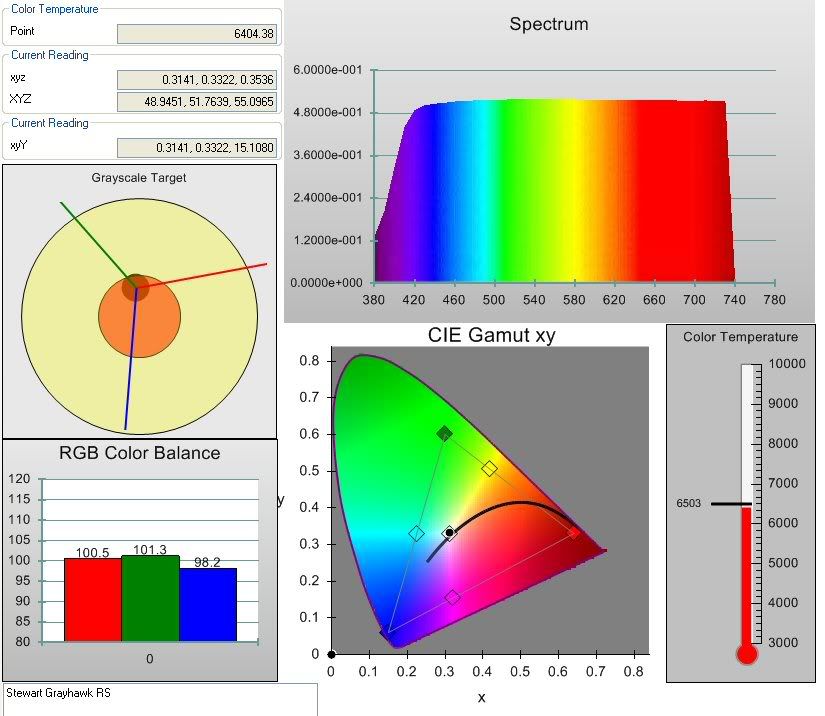

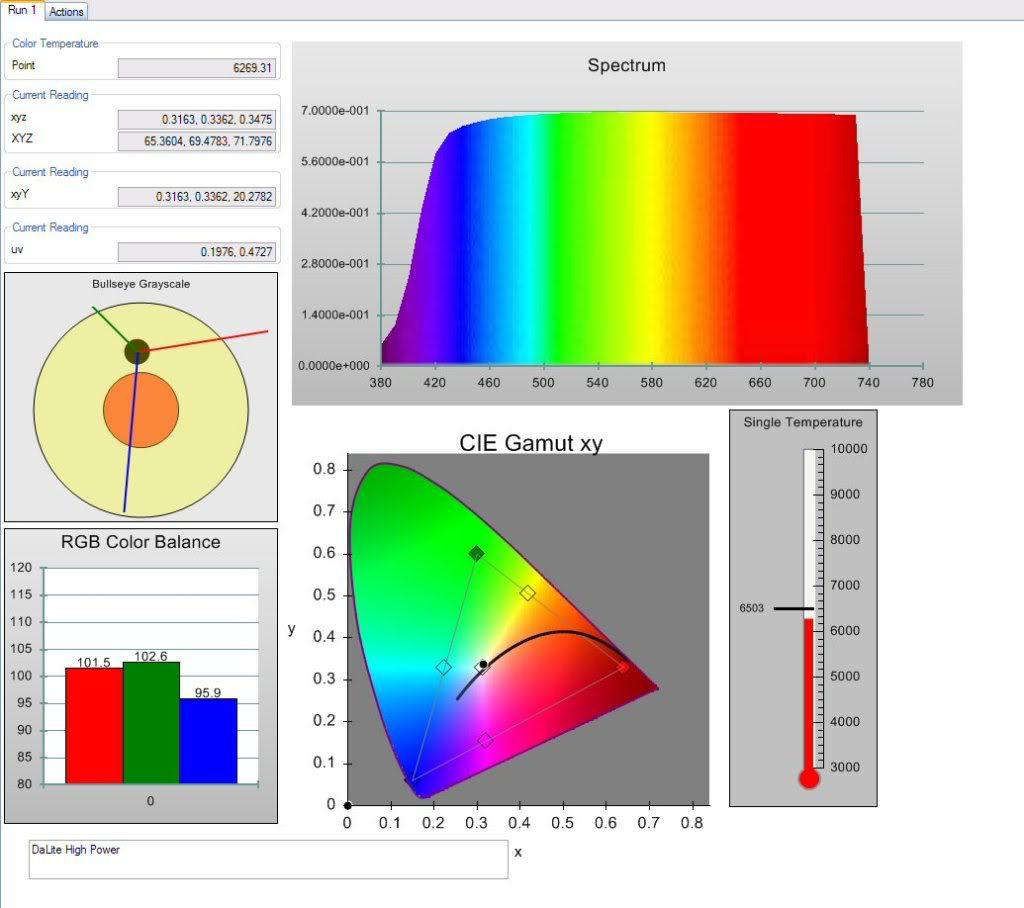

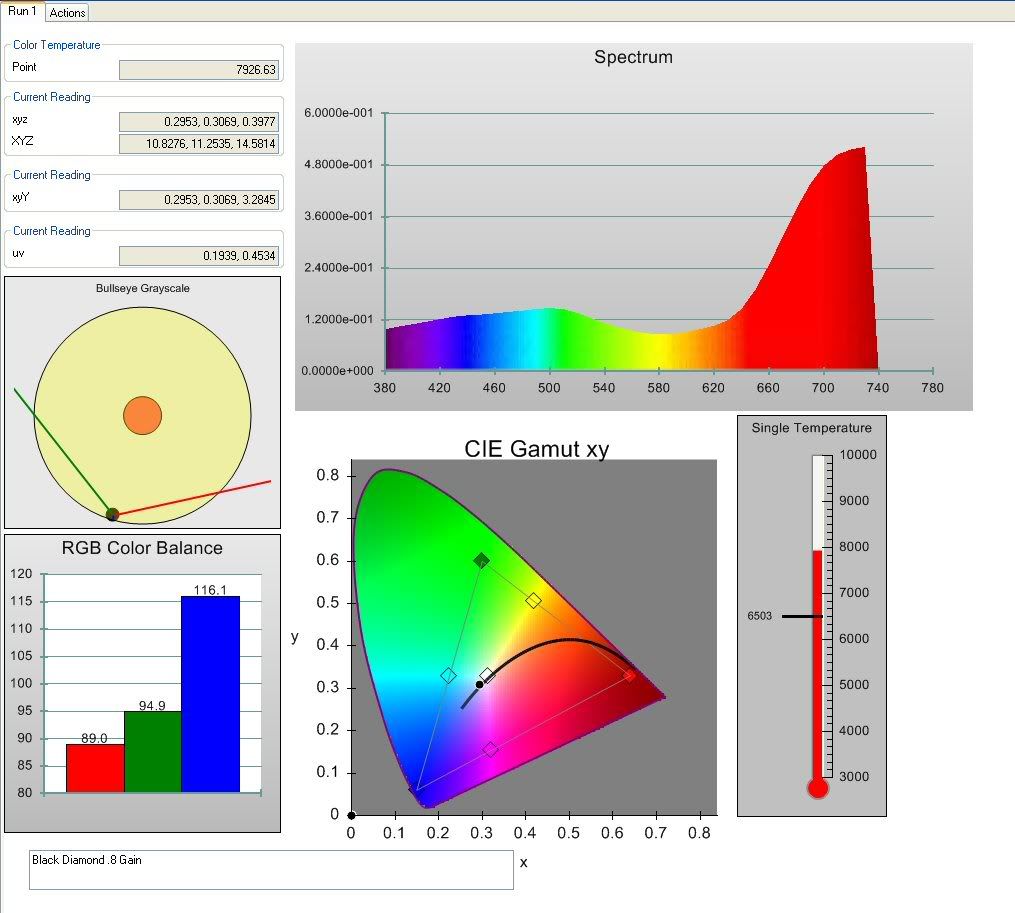

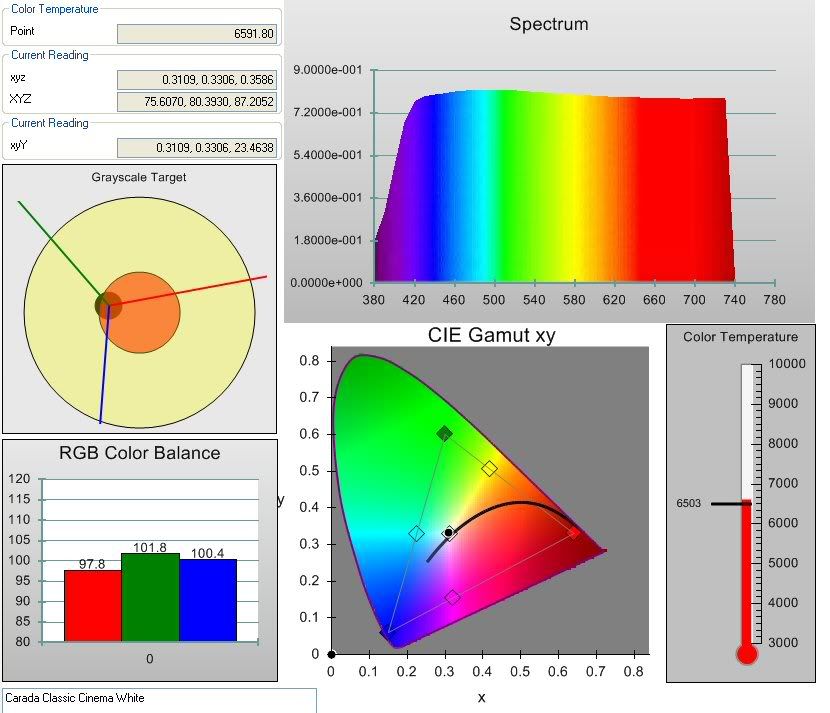

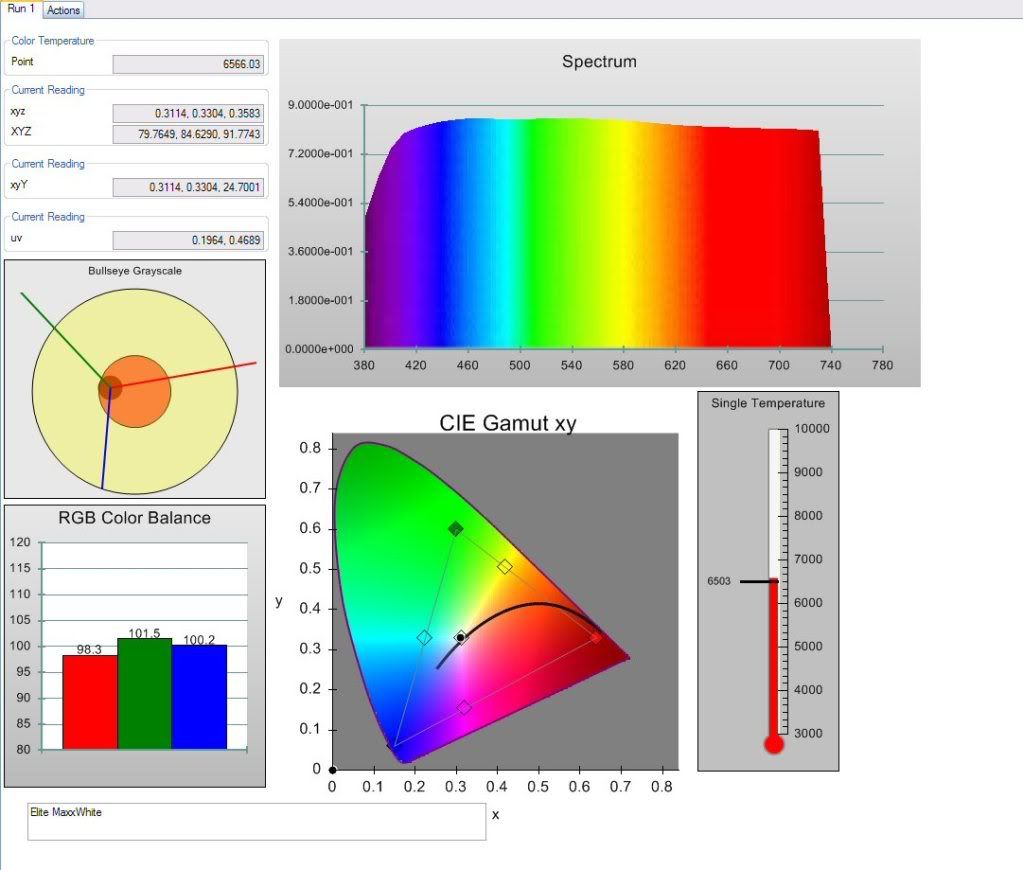

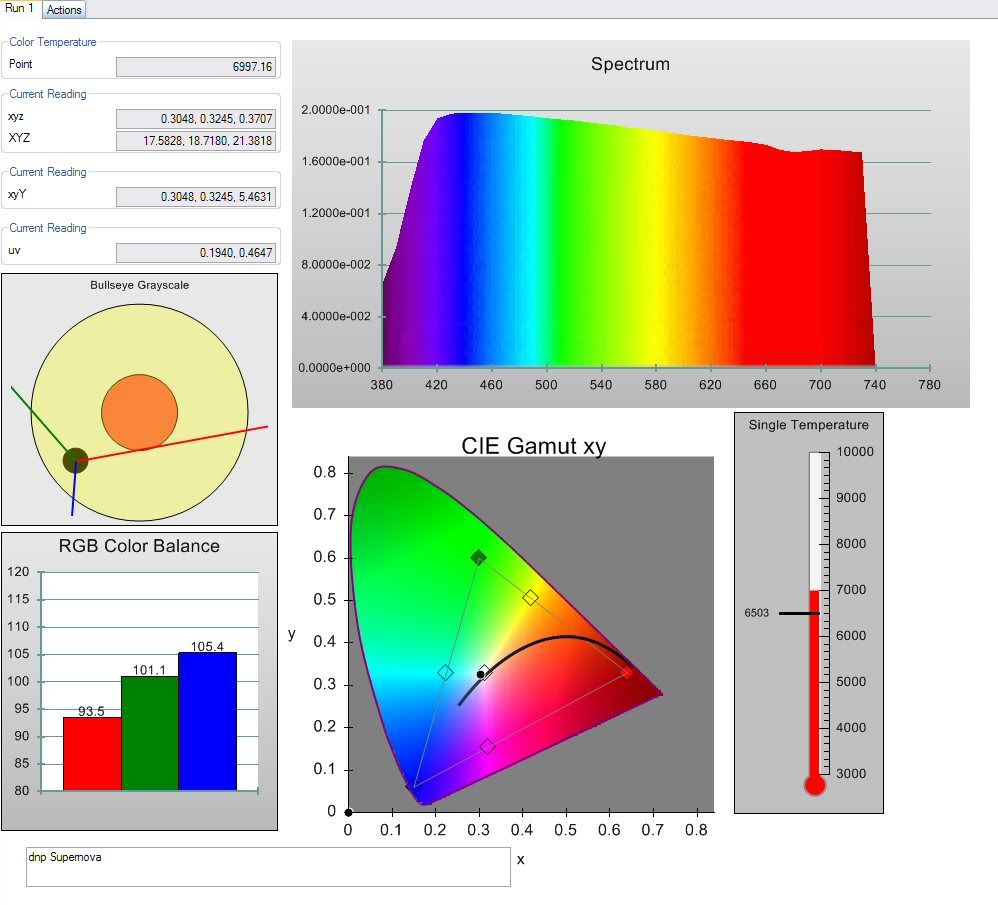

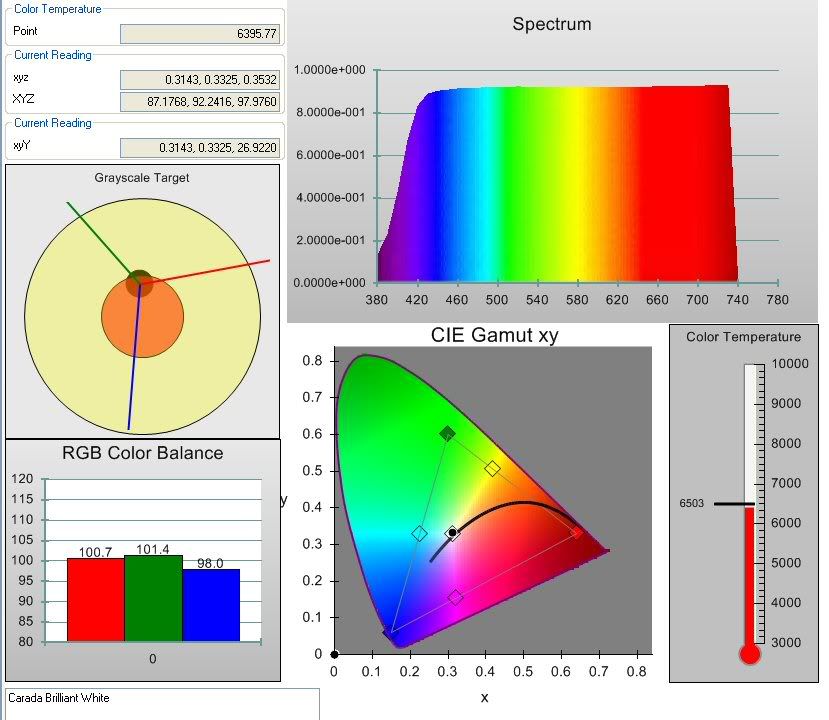

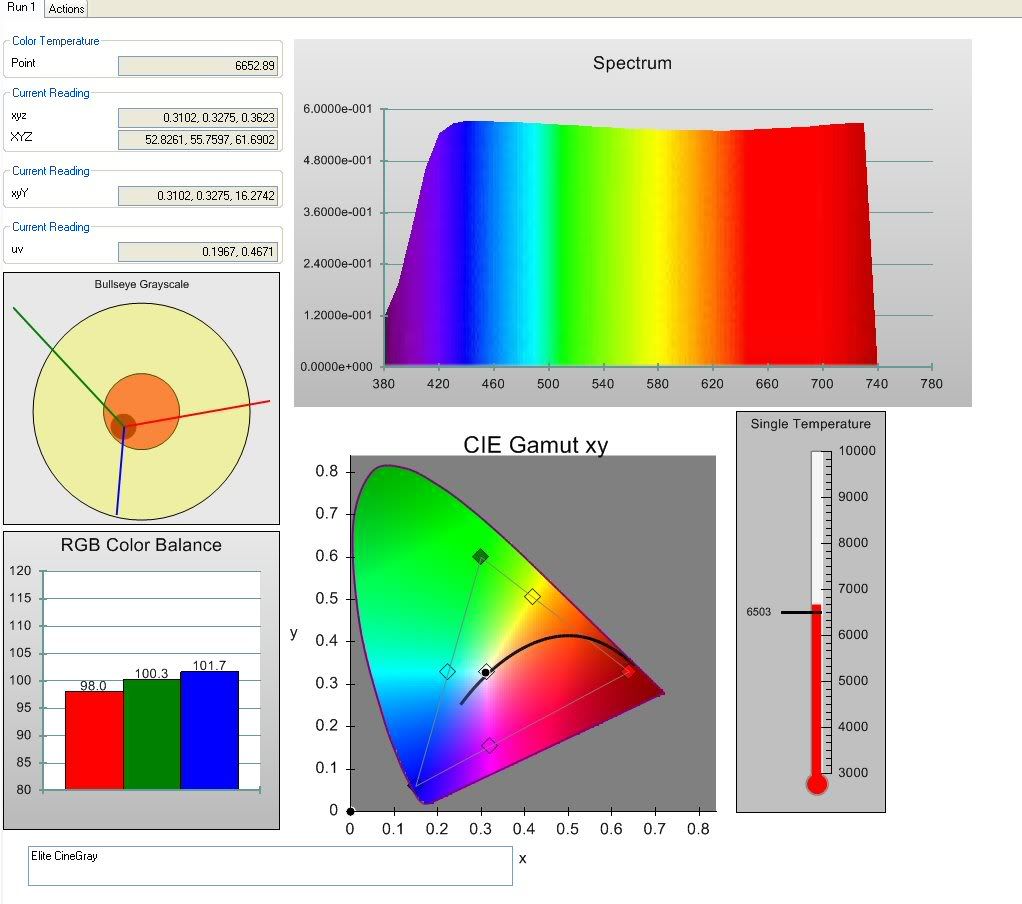

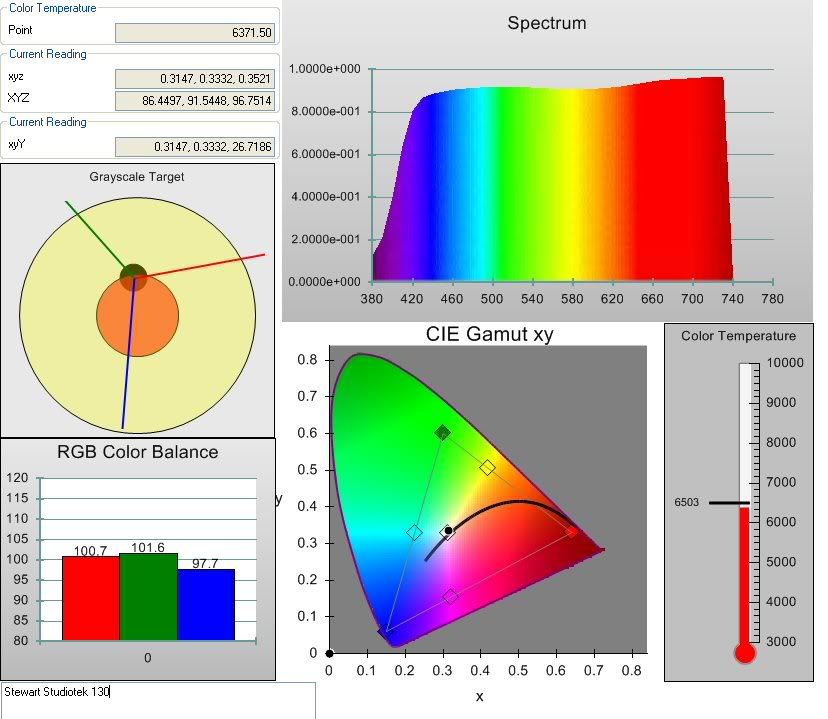

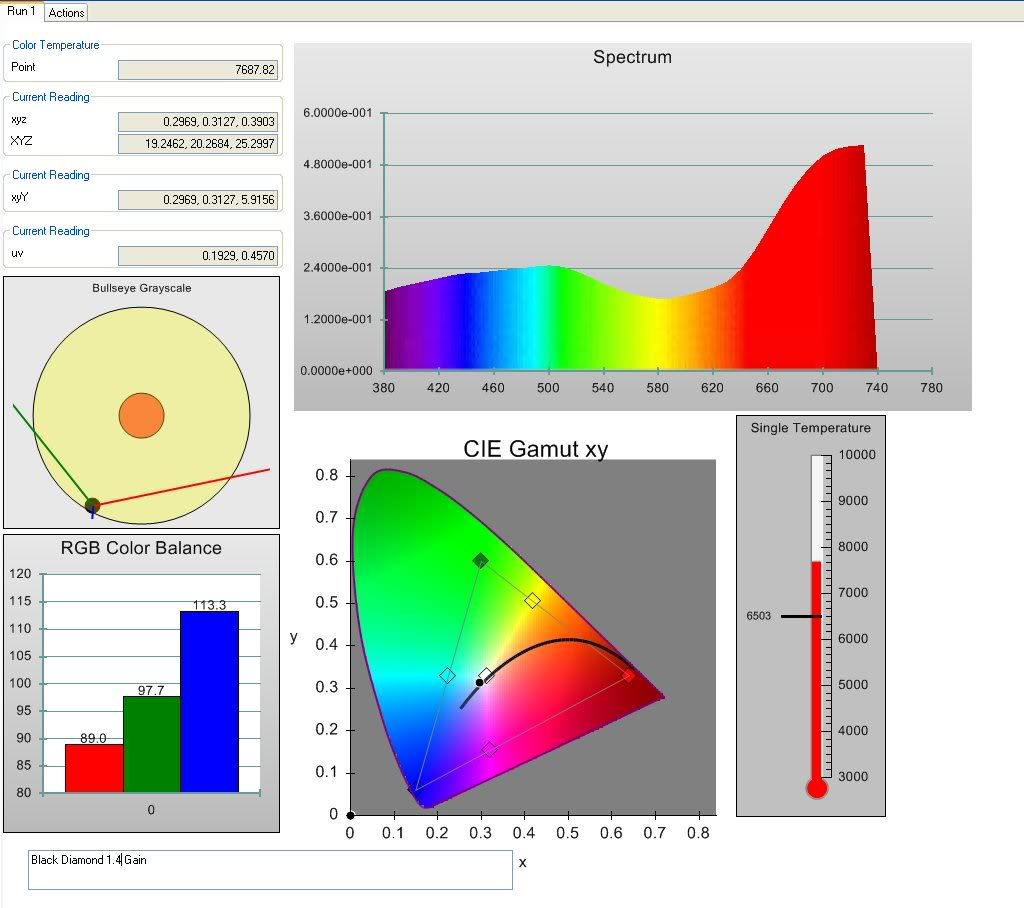

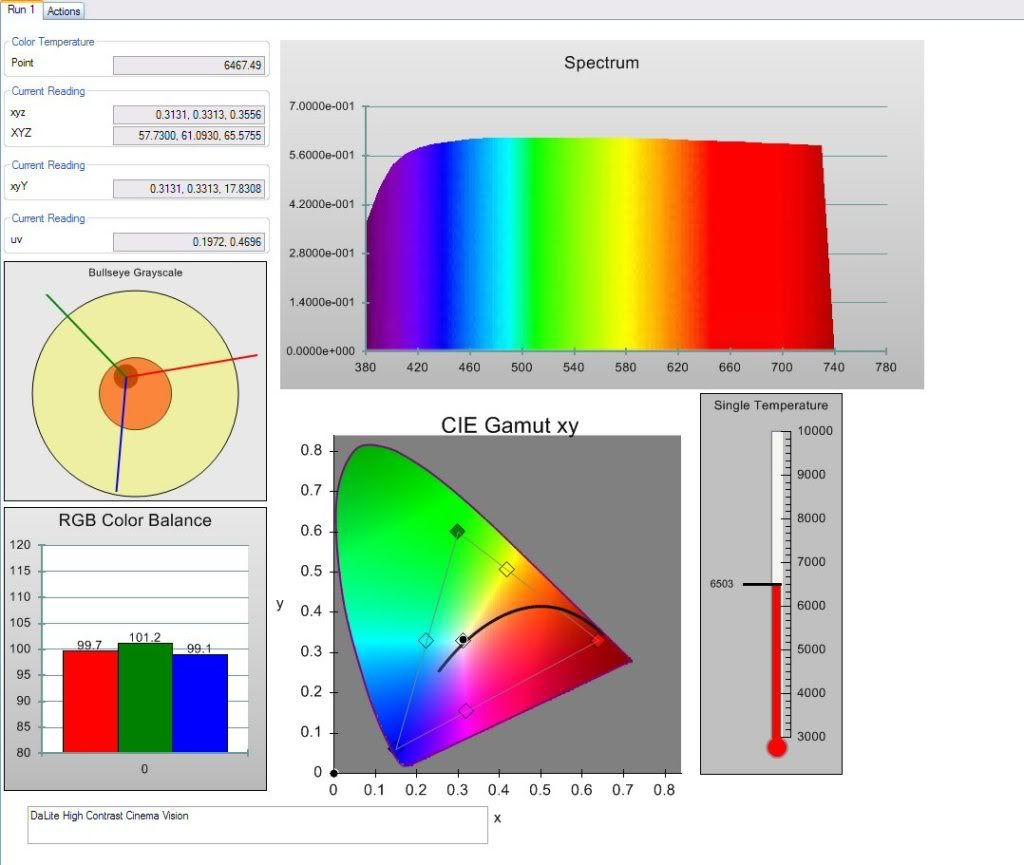

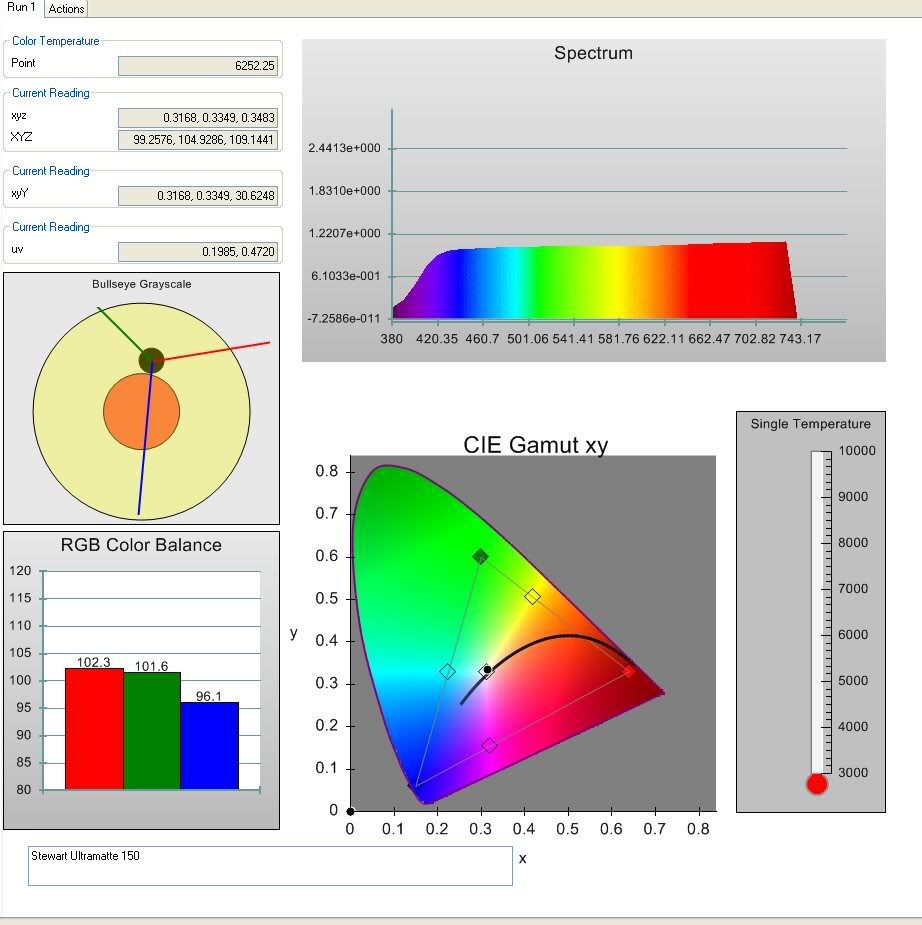

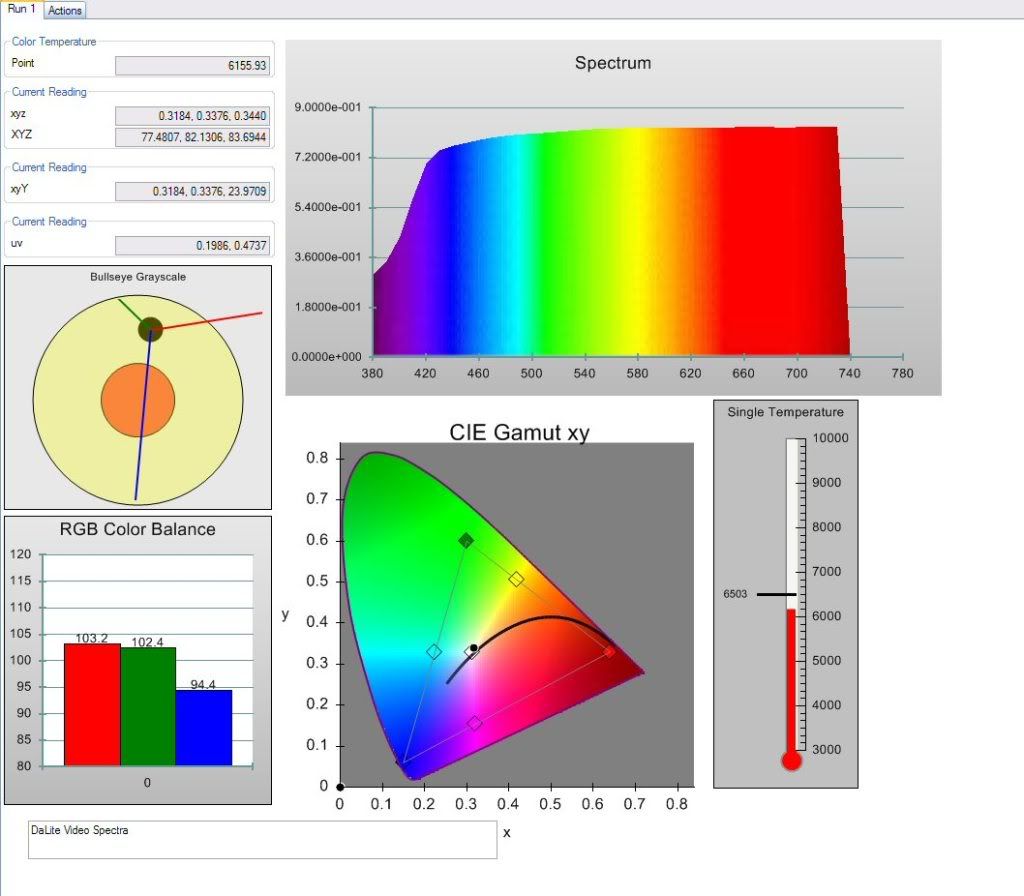

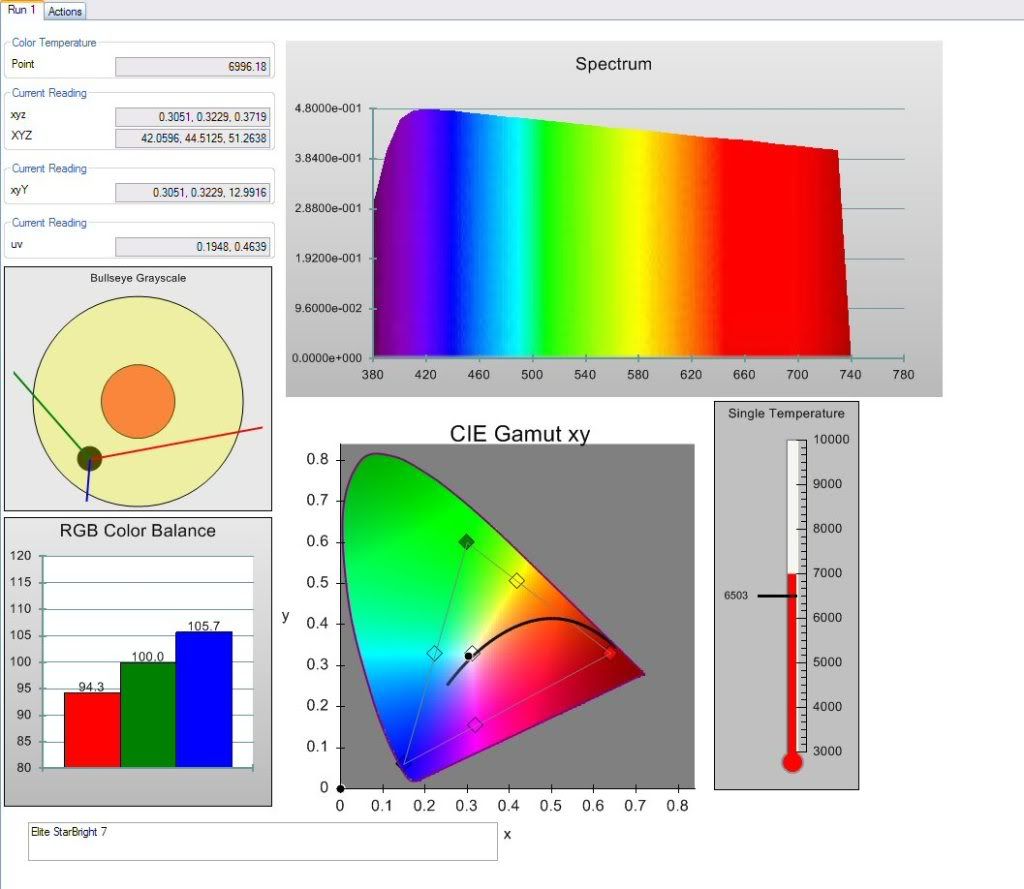

This is what the chart will look like. This is a reading from a X-Rite N5 Gray Card.



The upper left side has all the data fields. The middle left is the D65 bullseye. The lower left is the RGB Color Balance which shows the saturation for each primary color.

The upper right side is the spectrum chart. Below that is the CIE plot and the Color Temp gauge.

The Y value in xyY is a foot lambert measure, not the standard cd/m2 measure we are used to seeing. Multiply it by 3.4262590996353834259536468581083 to get the proper nits value.


·
Banned
Joined
·
14,914 Posts
Discussion Starter #13

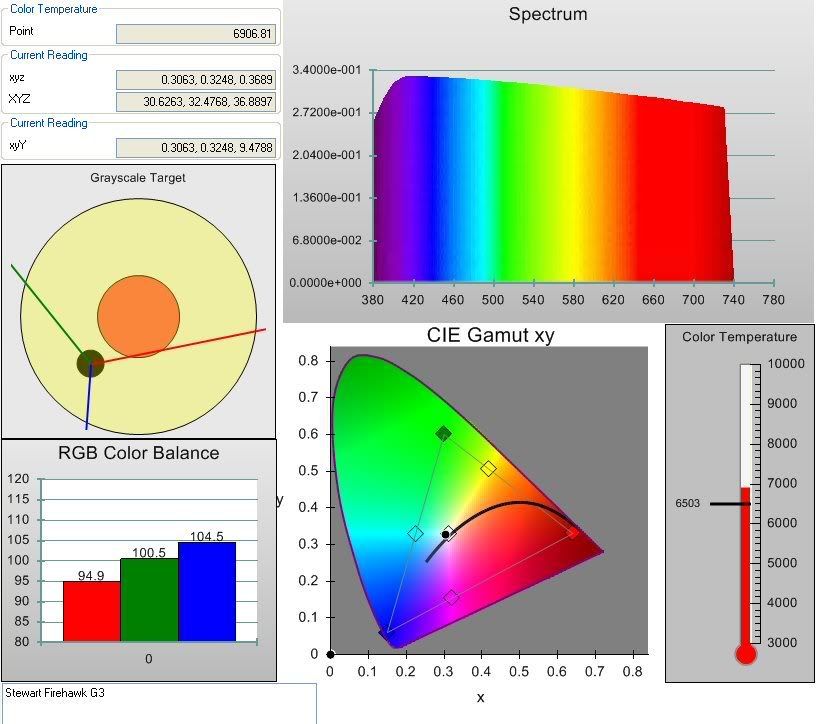

Stewart Firehawk G3

With the new CalMAN out I had to do a bit of work getting the layout back. I believe I've also fixed the size issue so there's no more fuzziness - knock on wood.
