Discussion Starter #1 (Edited)
Dayton 10" RSS256HF - $130/shipped from eBay
Stryke Audio 350 watt plate amp w/ 6 db boost at 30Hz - $110/shipped from private seller
Probably $50 in wood, paint, etc. Paint is Rustoleum "Aged Iron" textured spray paint.
External dimensions - 15" wide, 15.5" deep, 15.5" deep
Approx internal volume - 1.47 cu ft, minus .40 cu ft for internal amp enclosure nets 1.07 cu ft.
No stuffing, but I did line walls with speaker box carpet.
I don't have any means to do precise audible measurements. It hits hard and tight. Blends great with a pair of PSB Alphas.

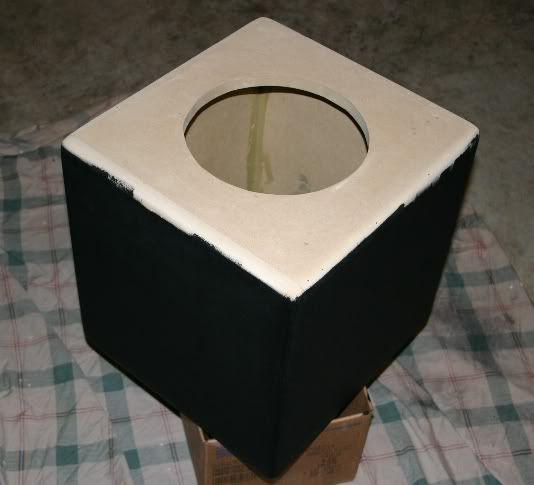

Photo of all but baffle painted with flat black base coat.

Photo showing rear amp cutout.

Photo showing internal amp enclosure and result of 2 cans of Rustoleum Aged Iron spray paint.

Amp installed.

Photo showing beige speaker box carpet lining inside walls.

Sounds good !!!!!


·
Premium Member
Joined
·
3,374 Posts
Good job, it looks great........:T


·
Registered
Joined
·
67 Posts
Discussion Starter #5
nice job, was this an upgrade from a previous sub?
I've had numerous subs over the years. I like a full sound with strong midbass for rock music. I have a hard time finding good sat+sub combos that please me. I was most recently listenting to a pair of Def Tech BP10b towers. They were really too big, so I went with this PSB Alpha/sealed Dayton sub setup. It sounds great!!!!!!
