57 Posts
Discussion Starter #1 (Edited)

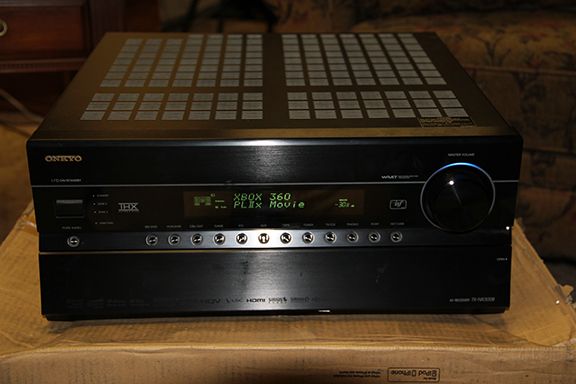

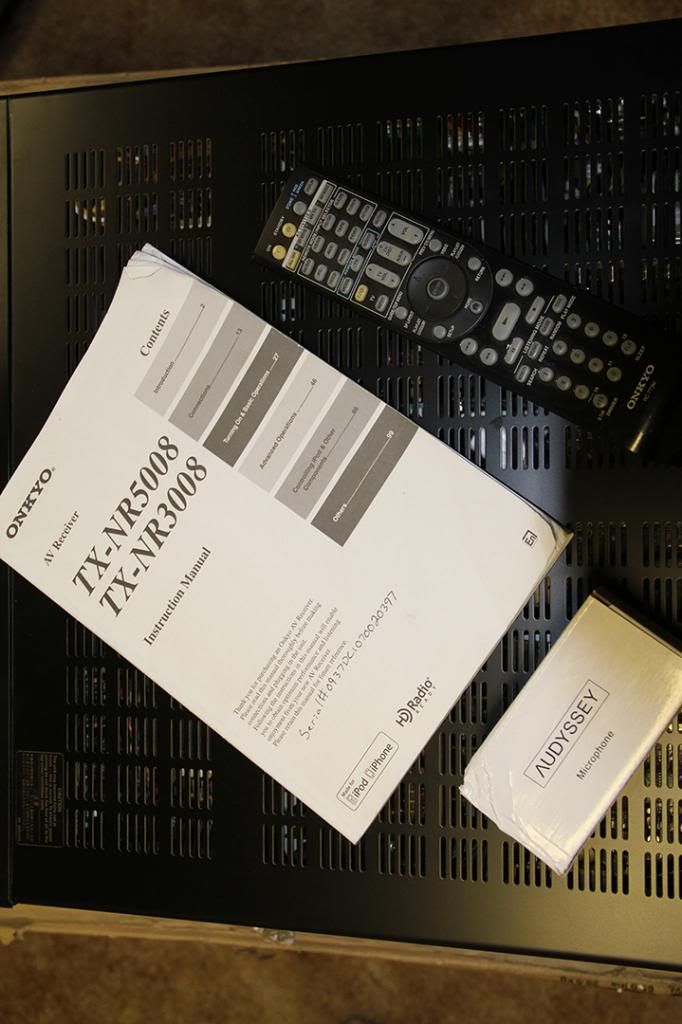

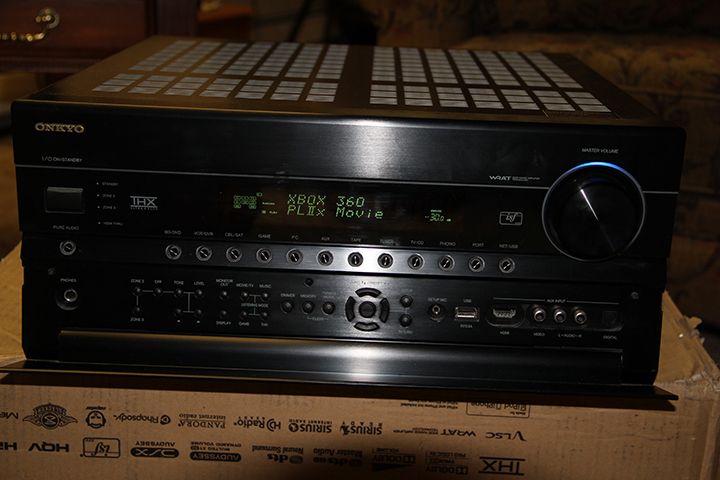

SOLD SOLD SOLDI bought this receiver new in Oct. 2010 from an authorized dealer. I have had zero issues with it and it looks as good as new. I just decided it was time to try something new. The remote, Audyessy mic, manual, antennas, and power cord are included. I do have the original box but the styrofoam packing was damaged when the receiver was shipped to me. Prefer local sale. $750 obo Located in SE MN Zipcode 55946 If I had to I could ship it. The box would just have different styrofoam. I have 100% positive feedback on ebay. Seller name spurdarren SOLD SOLD SOLD

Key Features

Advanced Features
THX Ultra2 Plus certified
HDMI (version 1.4a to Support 3D and Audio Return Channel) with Deep Color, x.v.Color, LipSync, Dolby TrueHD, DTS-HD Master Audio, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
8 HDMI inputs (1 front/7 rear) and 2 outputs
HDMI video upscaling to 1080p with HQV Reon-VX
VLSC (Vector Linear Shaping Circuitry) for all channels
Massive transformer and two separate transformers for audio and video processing
Burr-Brown 192 kHz/24-Bit DACs (PCM1796 x 6) for all channels
DSD Direct for Super Audio CD
Dolby volume for reference-quality listening experience at any volume
Network capability for streaming audio files (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, and LPCM)
Internet Radio connectivity (Pandora, Rhapsody, SIRIUS Internet Radio, Napster, Mediafly, Slacker, and vTuner)*
Powered Zone 2/3 and Zone 2/3 pre outs for distributed audio playback in multiple rooms
Zone 2 monitor output (composite video)
Bi-Amping and BTL (Bridged Transless) capability
Gold-Plated, machined solid brass, 11/16" (18 mm)-pitch audio inputs (TV/CD and phono)
Amplifier Features
140 watts per channel at 8 ohms, 20 Hz--20 kHz, 0.05%, 2 channels driven, FTC
WRAT (Wide Range Amplifier Technology)
Three-Stage Inverted Darlington Circuitry
H.C.P.S. (High Current Power Supply) massive high power transformer
Linear Optimum Gain Volume Circuitry
Large-size transistors for high-current drive
Processing Features
Three 32-Bit processing DSP chips (DA830 x 1, DA788 x 2)
PLL Jitter-Cleaning circuit technology
Audyssey DSX and Dolby Pro Logic IIz for new surround channels
Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, DTS-HD high-resolution audio decoding
DTs neural surround decoding
4 DSP modes for gaming: Rock, Sports, Action, and RPG
Music Optimizer for compressed digital music files
Direct Mode and Pure Audio Mode
A-Form Listening Mode memory
Theater-Dimensional virtual surround function

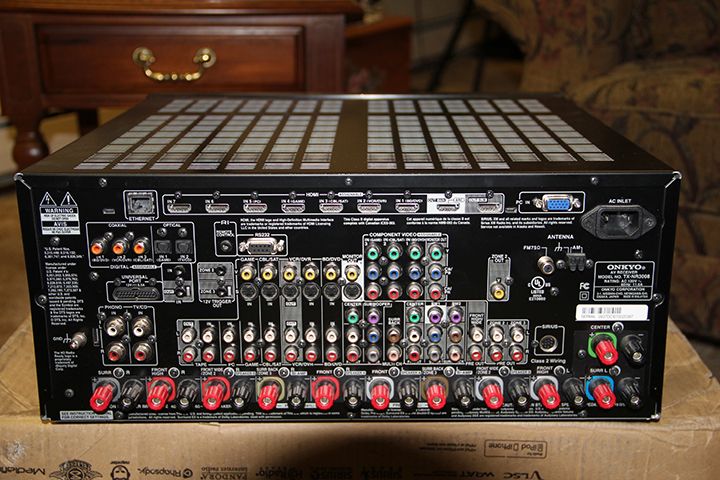

Connection Features
Front-panel USB input for memory devices and iPhone/iPod models (enables display of album artwork)
Universal port for single-cable connection of optional Onkyo dock for iPhone/iPod or HD Radio tuner
Component video switching (3 inputs and 1 output)
4 S-Video inputs and 1 output
Analog RGB video input (D-sub, 15 pin) and audio input for PC
6 digital inputs (3 optical and 3 coaxial)
5 A/V inputs (1 front/4 rear) and 1 output
Color-coded, 7.1 multichannel inputs
Video/S-Video outputs (monitor)
1 audio input and 1 output
Color-coded, 9.2 multichannel pre outs (including 2 independent subwoofer pre outs)
RS232 port, IR (in/out), and 12 V trigger outs (Zone 2/3)
Color-coded, Banana Plug-compatible speaker posts
RIHD (Remote Interactive over HDMI) for system control
SIRIUS Satellite Radio ready** and HD Radio ready
Other Features
ISF (Imaging Science Foundation) video calibration for optimal video performance
Certified with Windows 7 and DLNA version 1.5
Firmware updates via Ethernet and USB
Audyssey Dynamic EQ for loudness correction
Audyssey Dynamic Volume to maintain optimal listening level and dynamic range
Overlaid graphical on-screen display (OSD) via all video outputs
Crossover adjustment (40/50/60/70/80/90/100/120/150/200 Hz)
A/V sync control function (up to 250 ms in 5 ms steps)
40 FM/AM/SIRIUS random presets
Compatible with RI (Remote Interactive) dock for iPod
Bi-directional, preprogrammed, and customizable RI remote control with backlight, on-screen setup, mode-key LEDs, and macro presets for four activities
Technical Specifications

Amplifier Section
Power Output
Front L/R - 140 W/Ch (8 ohms, 20 Hz-20 kHz, 0.05%, 2 channels driven, FTC)
Center - 140 W/Ch (8 ohms, 20 Hz-20 kHz, 0.05%, 2 channels driven, FTC)
Surround L/R - 140 W/Ch (8 ohms, 20 Hz-20 kHz, 0.05%, 2 channels driven, FTC)
Surround Back L/R - 140 W/Ch (8 ohms, 20 Hz-20 kHz, 0.05%, 2 channels driven, FTC)
Front High L/R, Front Wide L/R, or Zone 2/3 L/R - 140 W/Ch (8 ohms, 20 Hz-20 kHz, 0.05%, 2 channels driven, FTC)
Dynamic power - 320 W (3 ohms, front), 270 W (4 ohms, front), 160 W (8 ohms, front)
THD (Total Harmonic Distortion) - 0.05% (rated power)
Damping factor - 60 (Front, 1 kHz, 8 ohms)
Input sensitivity and impedance - 200 mV/47 k-ohms (line), 2.5 mV/47 k-ohms (phono MM)
Rated RCA output level and impedance - 200 mV/470 ohms (pre out)
Maximum RCA output level and impedance - 5.5 V/470 ohms (pre out)
Phono overload - 70 mV (MM, 1 kHz, 0.5%)
Frequency response - 5 Hz-100 kHz/+1 dB, -3 dB (Direct Mode)
Tone control - ±10 dB, 50 Hz (bass), ±10 dB, 20 kHz (treble)
Signal-to-noise ratio - 110 dB (Line, IHF-A), 80 dB (phono, IHF-A)
Speaker impedance - 4 ohms-16 ohms or 6 ohms-16 ohms
Video Section
Input sensitivity/output level and impedance video
1.0 Vp-p/75 ohms (component and s-video Y)
0.7 Vp-p/75 ohms (component PB/CB, PR/CR)
0.28 Vp-p/75 ohms (s-video C)
1.0 Vp-p/75 ohms (composite)
Component video frequency response - 5 Hz-100 MHz/0 dB, -3 dB
Tuner Section
Tuning frequency range
FM: 87.5 MHz-107.9 MHz
AM: 530 kHz-1,710 kHz
FM/AM/SIRIUS preset memory - 40 stations
Power supply - AC 120 V~, 60 Hz
Power consumption - 11.6 A
Dimensions (W x H x D) - 17 1/8" x 7 13/16" x 18 1/4" (435 x 198.5 x 463.5 mm)
Weight - 55.1 lbs. (25.0 kg)
Carton dimensions (W x H x D) - 23 3/8" x 13 1/4" x 22 11/16" (594 x 337 x 596 mm)
Shipping weight - 66 lbs. (29.5 kg)


57 Posts
Discussion Starter #3
Its not that huge. Dimensions (W x H x D) - 17 1/8" x 7 13/16" x 18 1/4"

57 Posts
Discussion Starter #5
Multeq xt32

57 Posts
Discussion Starter #8
