If you have been following my theater build thread (link), you will know that I'm building a top notch, mid-budget theater in my basement. I am custom building the entire room myself....including the subs. I have built several subs in the past and I always enjoy the results as well as the build. This is one area that I really wanted to put my budget to good use. I decided to build Rythmik kits using four DS1501 drivers and two H600 plate amps

I built the boxes out of 3/4 MDF and painted them with eggshell black latex paint. The subs will be located on the front wall behind my AT screen. I wasn't too concerned with having a perfect finish...just basic black that won't reflect light. The boxes are each 3 cu ft internal volume. There is internal bracing and double layered MDF on all sides. These things are heavy. Each box + driver weighs 120lbs. Because I built a box for each driver, I also needed to build separate boxes for the plate amps to live. These will hang on the wall next to each pair of driver boxes. I didn't want to spend the money (over 100$) for binding posts (32 total) to connect all these components together. Instead, I purchased some brass tubing to make some DIY banana plug ports. This was less than a fifth of the expense and I wish I had thought of it when I built the kits for my other speakers.

I am currently assembling the electrical components and should have all the boxes wired and buttoned up tonight. I will be running REW on them this weekend, so I should have some response plots and more pictures shortly. In the mean time, here are the pictures from my build. ENJOY!!!

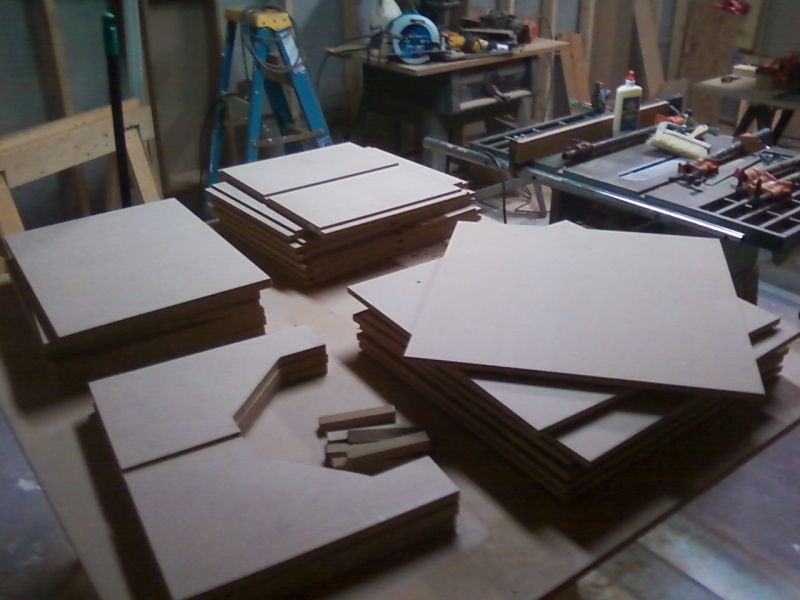

Stacks of MDF cut and ready for assembling:

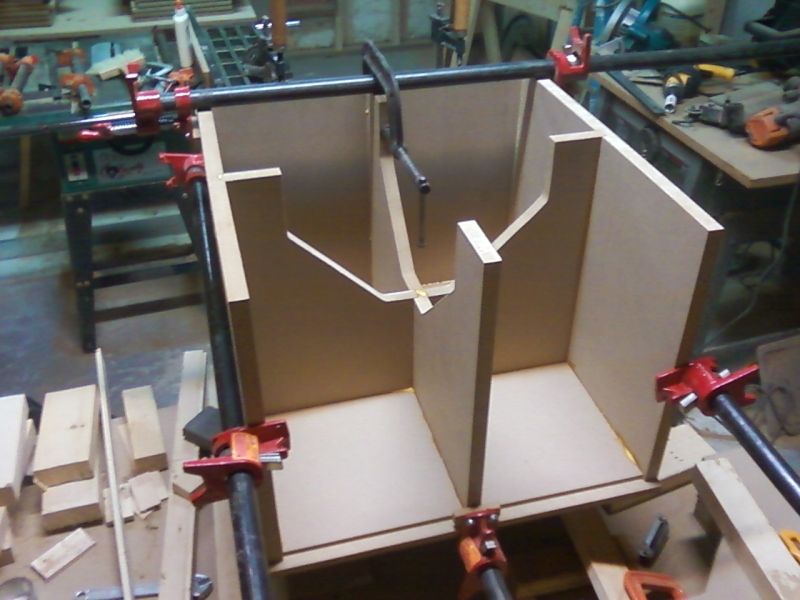

One of the boxes in clamps:

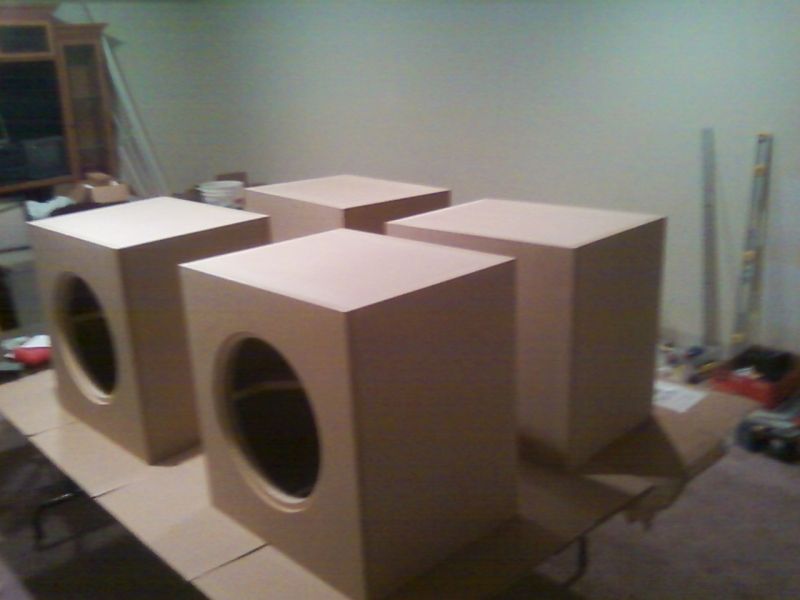

My four horsemen:

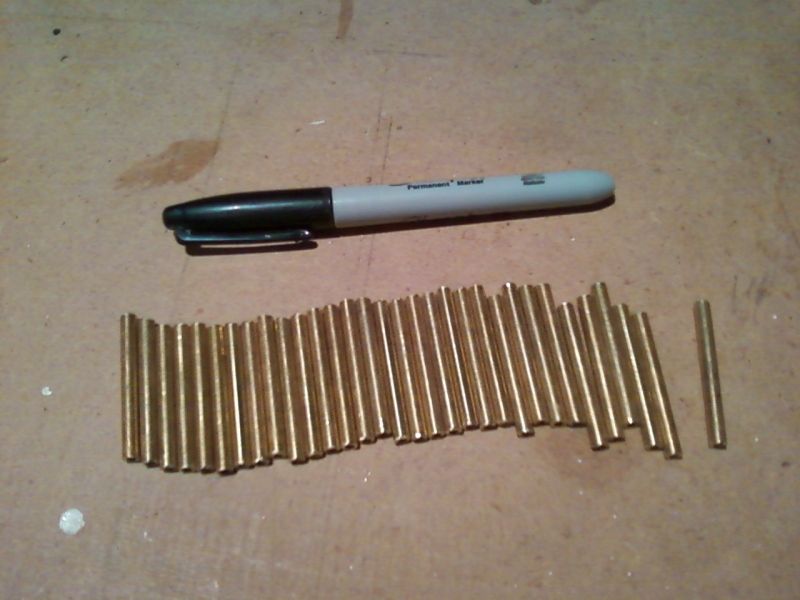

Stack of brass banana plug ports:

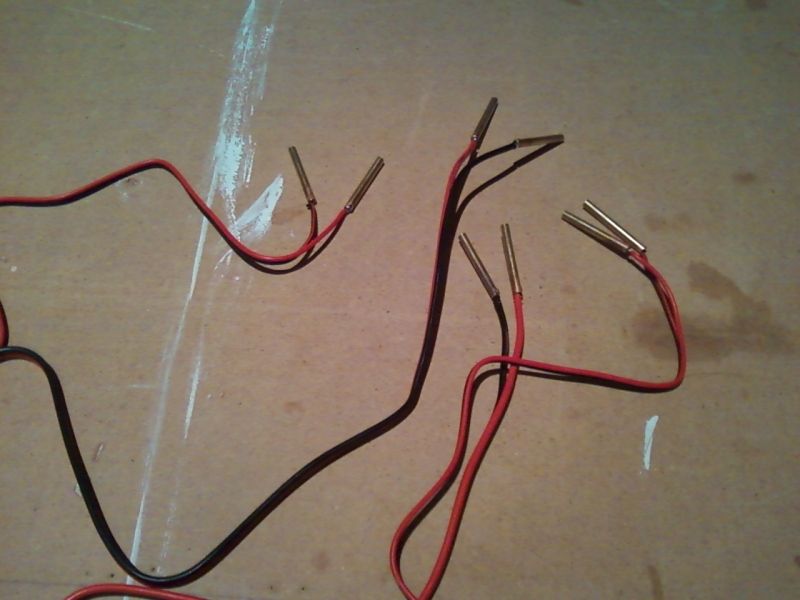

Banana plug ports soldered to wiring:

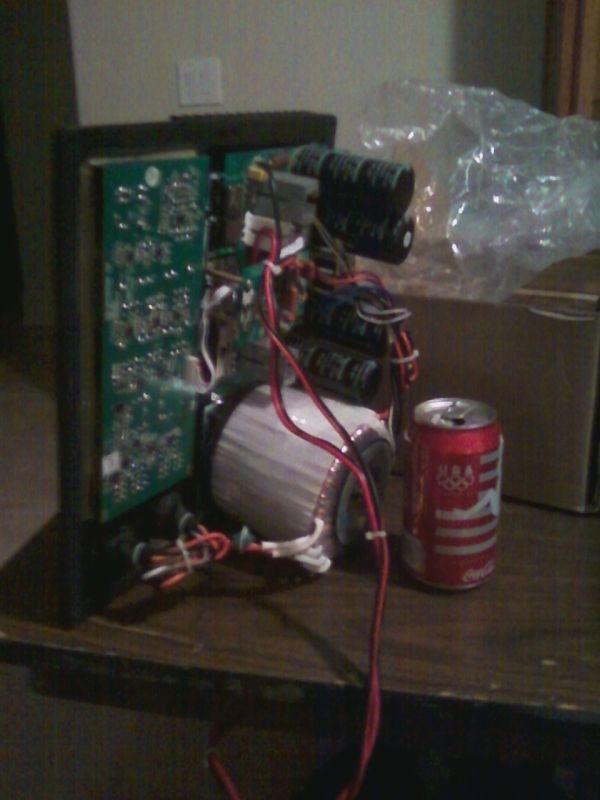

H600 Amp:

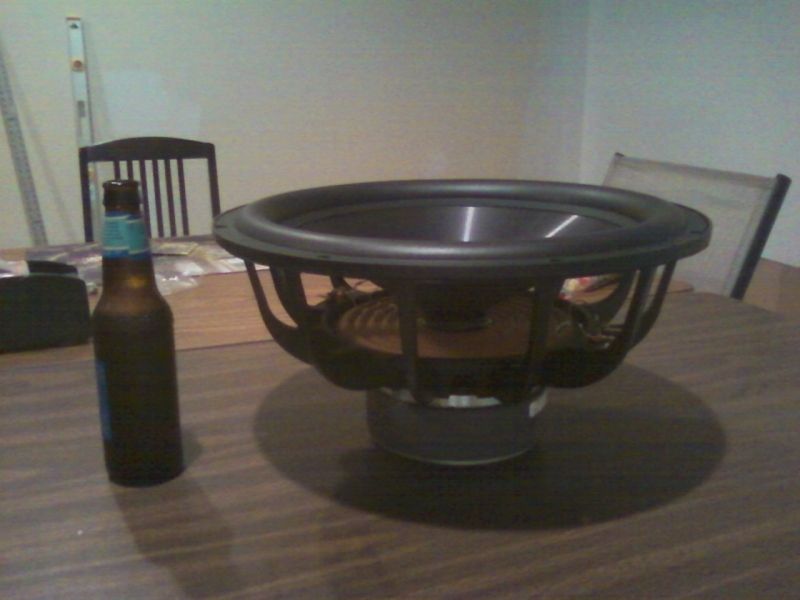

DS1501 Driver:

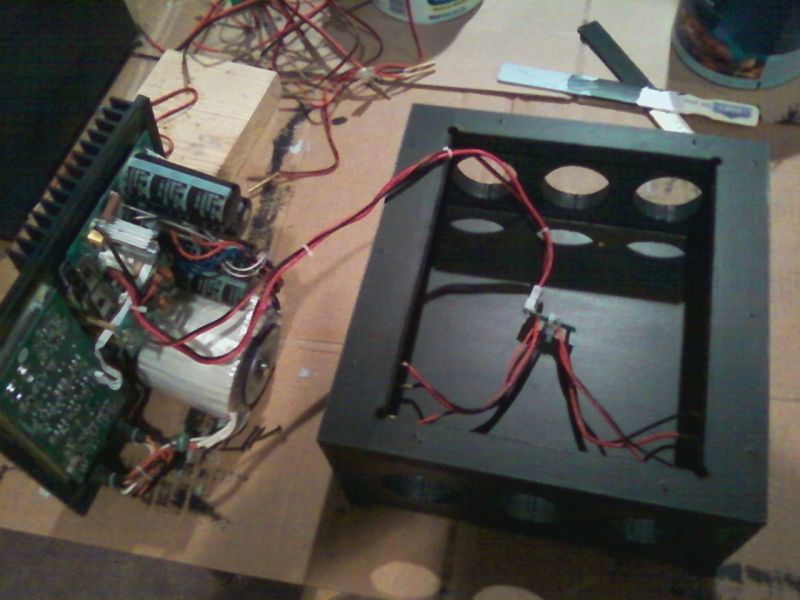

Installing Amp:
